Unleash Precision and Purity

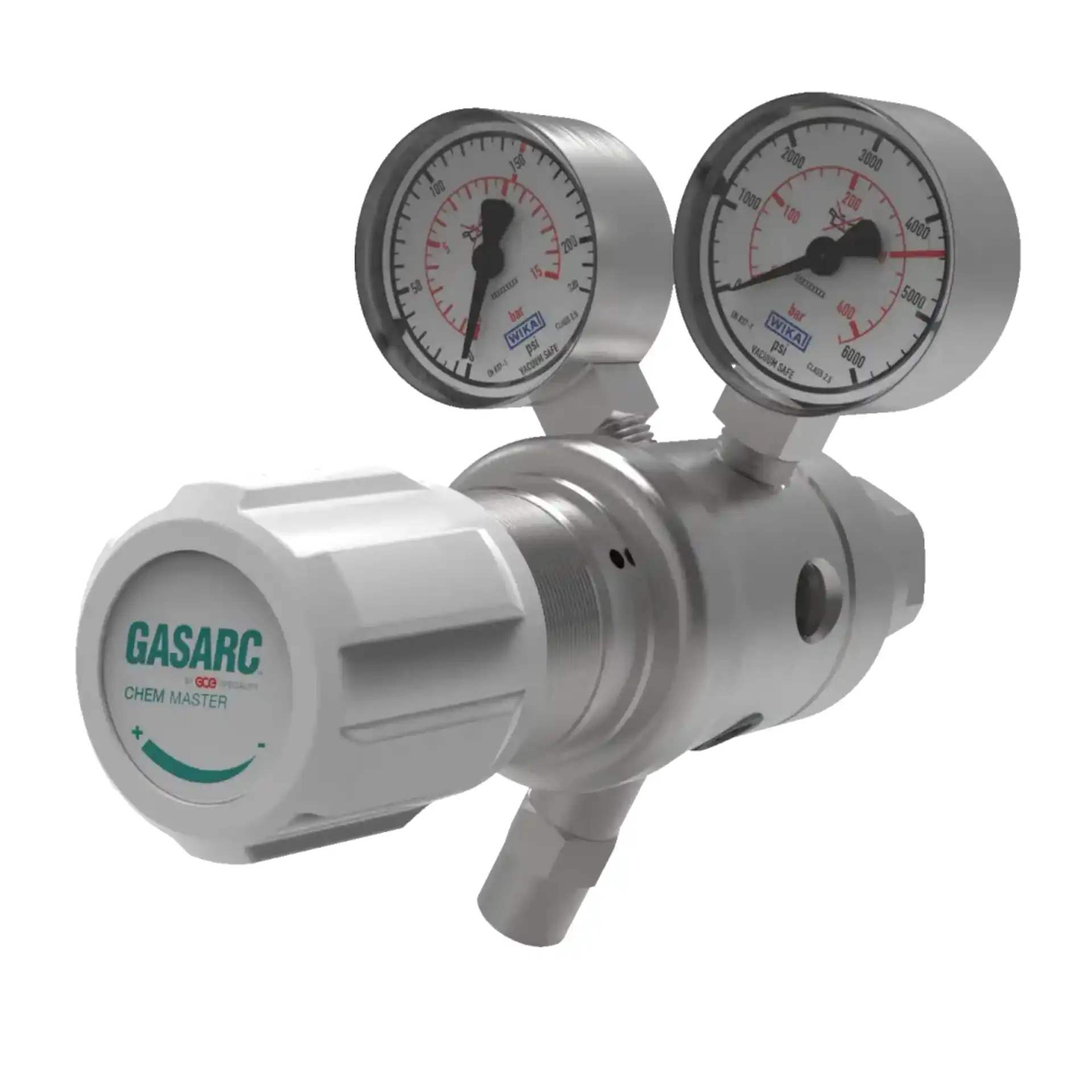

Experience unparalleled precision, unwavering stability, and uncompromising safety in your gas control applications with the Gasarc Chem Master SGT600 Two-Stage Side Entry Gas Regulator. Engineered for the most demanding environments, this industry-leading regulator guarantees consistent, high-purity delivery, making it an indispensable tool for professionals who require absolute reliability.
The Gasarc Chem Master SGT600 is a meticulously designed two-stage diaphragm cylinder regulator, purpose-built for the primary pressure control of high-purity, corrosive, and toxic gases up to an exceptional Grade 6.0 purity (99.9999%). Unlike single-stage regulators, its advanced two-stage regulation system ensures a rock-solid, dependable output pressure, irrespective of fluctuating cylinder pressure. This crucial feature translates directly into superior process results and consistent performance, even as cylinder contents deplete. Crafted from premium 316L Stainless Steel for maximum durability and corrosion resistance, and featuring an encapsulated seat design with a low wetted surface area, the SGT600 minimises contamination risks, safeguarding the integrity of your gases. The innovative side-entry configuration offers exceptional ease of installation and accessibility in confined workspaces, while its flexible five-port setup and comprehensive range of inlet and outlet fittings provide versatile compatibility with diverse systems. For critical applications demanding unwavering precision and purity, the Gasarc Chem Master SGT600 stands as the definitive choice.
Features
- Two-Stage Diaphragm Design: Guarantees superior stability and consistent delivery pressure, regardless of cylinder pressure fluctuations.
- High-Purity Gas Compatibility: Specifically designed for corrosive, toxic, and high-purity gases up to Grade 6.0 (99.9999%).
- Robust Construction: Manufactured from 316L Stainless Steel for exceptional longevity and corrosion resistance.
- Side-Entry Configuration: Facilitates easy and efficient installation, particularly in space-constrained areas.
- Encapsulated Seat Design: Provides enhanced sealing, minimised leakage risks, and reduced potential for contamination.
- Low Wetted Surface Area: Maintains gas purity by significantly reducing adsorption and contamination.
- Versatile Porting: Features a five-port configuration and a full range of inlet and outlet fittings for broad system compatibility.
- Clear Pressure Monitoring: Equipped with 50mm (2″) diameter gauges for easy-to-read pressure indications.
- Integrated Filtration: Includes a 10-micron 316L Stainless Steel inlet filter for added protection against particulates.
- Wide Temperature Range: Operates effectively across a temperature range of -20°C to +60°C (-4°F to +140°F).
Applications
- Welding (MIG/MAG): Achieve consistent and high-quality welds.
- Beverage Carbonation: Ensure precise and reliable carbonation processes.
- Food-Grade Purging: Maintain hygienic and uncontaminated environments.
- Inerting Processes: Safely and effectively displace unwanted gases.
- Laser Cutting (with Assist Gas): Provide stable gas flow for optimal cutting performance.
- Analytical Instrumentation: Support precise gas delivery for sensitive laboratory equipment.
- Research Laboratories: Ideal for applications requiring critical gas purity and pressure control.
- Industrial Processes: Suitable for various manufacturing and industrial environments dealing with corrosive or toxic gases.
- Medical and Healthcare: Ensures safe and accurate control of medical gases.
Ordering
| Part No. / Model No. | Gas | Pressure | Fitting | Entry | Inlet Pressure |
|---|---|---|---|---|---|
| 3960003036 | Inert | 0 – 1.5bar | No. 3 | Side | 300 |
| 3960004842 | Inert | 0 – 3.5bar | No. 3 | Side | 300 |
| 3960040116 | Inert | 0 – 6bar | No. 3 | Side | 300 |
| 3960005931 | Inert | 0 – 10bar | No. 3 | Side | 300 |
| 3960004637 | Fuel | 0 – 1.5bar | No. 4 | Side | 300 |
| 3960006228 | Fuel | 0 – 3.5bar | No. 4 | Side | 300 |
| 3960042943 | Fuel | 0 – 6bar | No. 4 | Side | 300 |
| 3960002459 | Fuel | 0 – 10bar | No. 4 | Side | 300 |
| 3960008000 | CO2 | 0 – 1.5bar | No. 8 | Side | 60 |
| 3960008024 | CO2 | 0 – 3.5bar | No. 8 | Side | 60 |
| 3960045753 | CO2 | 0 – 6bar | No. 8 | Side | 60 |
| 3960008017 | CO2 | 0 – 10bar | No. 8 | Side | 60 |
Specifications
| Product Line | Chem Master |
|---|---|
| Purity Grade | 6.0 (99.9999%) |
| Gas Properties | Non-corrosive, toxic |
| Material (main body) | 316L Stainless Steel |
| Material (bonnet) | Nickel plated brass barstock |
| Material (diaphragm) | 316L Stainless Steel |
| Material (seal) | FKM / EPDM |
| Material (valve seat) | PCTFE |
| Material (filter) | 10 Micron 316L Stainless Steel |
| Regulation Type | Dual stage / Two stage |
| Applications | Industry, Refrigeration, Analytical Laboratories, Food and Beverages |
| Maximum Inlet Pressure (bar/psi) | 60, 300 / 870, 4350 (subject to cylinder connection) |
| Delivery Pressure Range (bar/psi) | 1.5, 3.5, 6, 10 (22, 50, 90, 150) |
| Gauges | 50mm (2”) Diameter |
| Ports | 1/4” NPT Female |
| Helium leak integrity | 1 x 10-9 mbar l/s |
| Temperature Range | -20oC to +60oC (-4oF to +140oF) |
| Weight (kg / lbs) – cylinder connection not included | 1.7 / 3.8 |
Resources
Upgrade your gas control systems to the highest standard of precision and safety. Invest in the Gasarc Chem Master SGT600 Two-Stage Side Entry CO2 Gas Regulator today and experience the difference of unparalleled performance. Place your order now or contact us.
