Unrivalled Precision for Critical Gas Applications

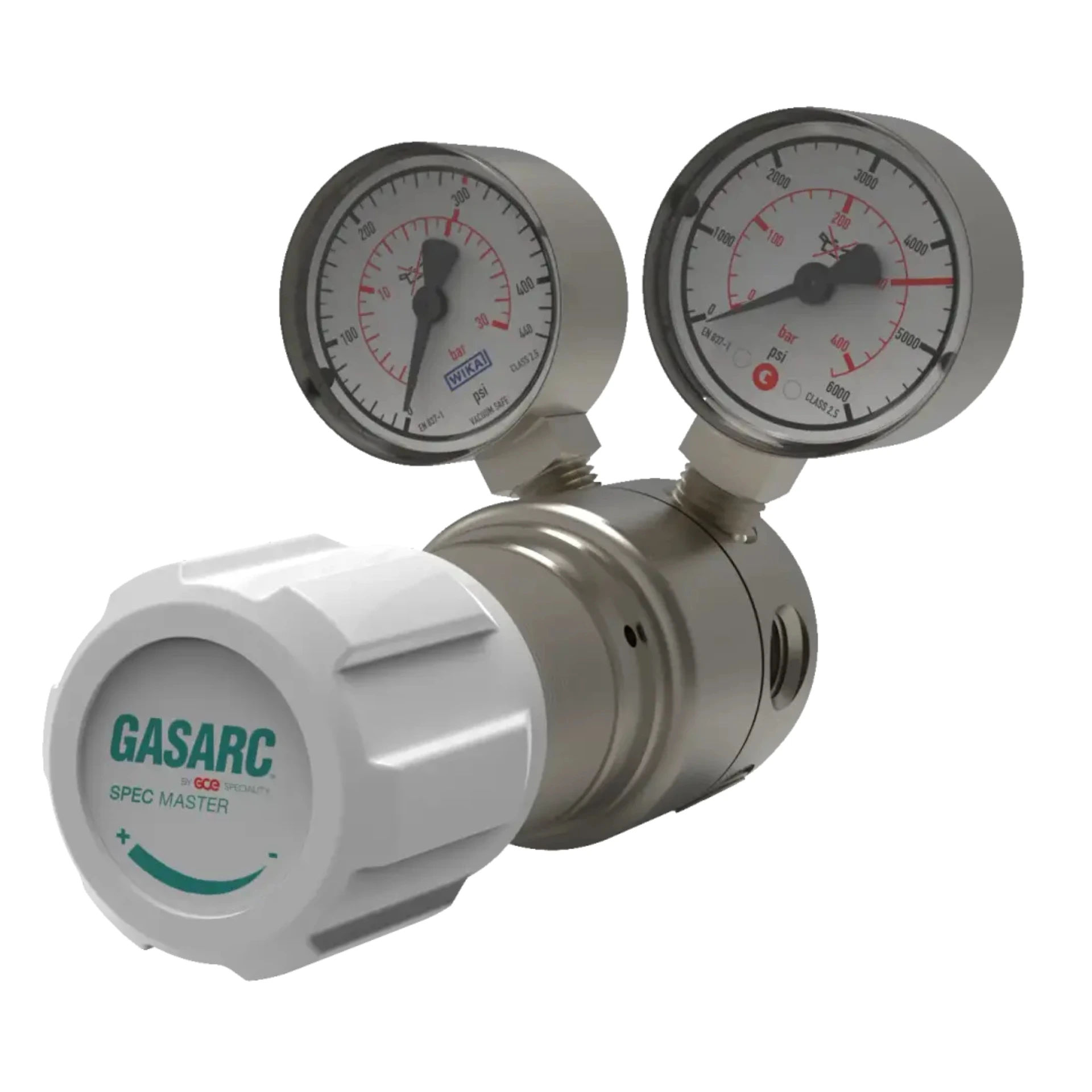

The Gasarc Spec Master HPS620 High Purity Single Stage Regulator stands as a pinnacle of engineering for precise and reliable control of high-purity gases. Designed for the most demanding environments, including analytical laboratories, industrial processes, and specialised manufacturing, this regulator ensures the integrity of your gas supply up to an exceptional purity grade of 6.0 (99.9999%). For professionals seeking a robust, long-lasting, and highly accurate solution for non-corrosive and toxic gas management, the HPS620 is the definitive choice.
Features
- Exceptional Gas Purity Control: Engineered for precise management of high-purity gases up to grade 6.0 (99.9999%), safeguarding against contamination.
- Robust Construction: Features a nickel-plated brass barstock body, bonnet, and piston for superior durability, corrosion resistance, and extended service life in challenging operational environments.
- Encapsulated Seat Design: Minimises internal leaks and reduces contamination risk, ensuring consistent gas quality and system longevity.
- Optimised for High Purity: Low wetted surface area efficiently handles high-purity gases, critical for precision applications where gas integrity is paramount.
- Versatile Gas Compatibility: Suitable for a wide range of non-corrosive and toxic gases, offering broad applicability across various industries.
- Flexible Port Configuration: Equipped with a six-port configuration (two inlet, two outlet) and flexible base and side entry fittings for versatile gas routing and seamless integration into diverse systems.
- Adjustable Mounting Options: Supports both front and rear panel mounting, providing installation flexibility to suit your specific setup.
- Wide Pressure Range:
- Maximum Inlet Pressure: Up to 300 bar (4350 psi)
- Delivery Pressure Range: 20, 50, 100, 200, or 250 bar (300, 725, 1450, 2900, or 3625 psi)
- Reliable Performance: Operates effectively within a temperature range of -20°C to +60°C (-4°F to +140°F) with a helium leak integrity of 1 x 10-9 mbar l/s.
What’s In The Box
- Cylinder Connection
- Cylinder Contents Gauge
- Outlet Pressure Gauge
HPS620
| Part No. | Model No. | Gas | Outlet Pressure | Outlet | Inlet |
|---|---|---|---|---|---|
| 3960003203 | HPS621-04-07-01-01-010-00-A | Oxygen/Inert | 0 – 20bar | 1/4 NPT Female | BS 341 No. 3 |
| 3960006105 | HPS621-04-10-01-01-010-00-A | Oxygen/Inert | 0 – 50bar | 1/4 NPT Female | BS 341 No. 3 |
| 3960008918 | HPS621-04-11-01-01-010-00-A | Oxygen/Inert | 0 – 100bar | 1/4 NPT Female | BS 341 No. 3 |
| 3960003586 | HPS621-04-12-01-01-010-00-A | Oxygen/Inert | 0 – 200bar | 1/4 NPT Female | BS 341 No. 3 |
| 3960004088 | HPS621-04-13-01-01-010-00-A | Oxygen/Inert | 0 – 250bar | 1/4 NPT Female | BS 341 No. 3 |
| Order By Model | HPS621-04-07-01-01-023-00-A | Oxygen NEVOC | 0 – 20bar | 1/4 NPT Female | BS 341 No. 32 |
| Order By Model | HPS621-04-10-01-01-023-00-A | Oxygen NEVOC | 0 – 50bar | 1/4 NPT Female | BS 341 No. 32 |
| Order By Model | HPS621-04-11-01-01-023-00-A | Oxygen NEVOC | 0 – 100bar | 1/4 NPT Female | BS 341 No. 32 |
| Order By Model | HPS621-04-12-01-01-023-00-A | Oxygen NEVOC | 0 – 200bar | 1/4 NPT Female | BS 341 No. 32 |
| Order By Model | HPS621-04-13-01-01-023-00-A | Oxygen NEVOC | 0 – 250bar | 1/4 NPT Female | BS 341 No. 32 |
| 3960052492 | HPS621-04-07-01-01-021-00-A | Inert NEVOC | 0 – 20bar | 1/4 NPT Female | BS 341 No. 30 |
| Order By Model | HPS621-04-10-01-01-021-00-A | Inert NEVOC | 0 – 50bar | 1/4 NPT Female | BS 341 No. 30 |
| 3960022914 | HPS621-04-11-01-01-021-00-A | Inert NEVOC | 0 – 100bar | 1/4 NPT Female | BS 341 No. 30 |
| 3960006006 | HPS621-04-12-01-01-021-00-A | Inert NEVOC | 0 – 200bar | 1/4 NPT Female | BS 341 No. 30 |
| 3960026233 | HPS621-04-13-01-01-021-00-A | Inert NEVOC | 0 – 250bar | 1/4 NPT Female | BS 341 No. 30 |
| 3960020439 | HPS621-04-07-01-01-012-00-A | Fuel | 0 – 20bar | 1/4 NPT Female | BS 341 No. 4 |
| 3960008994 | HPS621-04-10-01-01-012-00-A | Fuel | 0 – 50bar | 1/4 NPT Female | BS 341 No. 4 |
| 3960002404 | HPS621-04-11-01-01-012-00-A | Fuel | 0 – 100bar | 1/4 NPT Female | BS 341 No. 4 |
| 3960006174 | HPS621-04-12-01-01-012-00-A | Fuel | 0 – 200bar | 1/4 NPT Female | BS 341 No. 4 |
| 3960049294 | HPS621-04-13-01-01-012-00-A | Fuel | 0 – 250bar | 1/4 NPT Female | BS 341 No. 4 |
| Order By Model | HPS621-04-07-01-01-024-00-A | Fuel Nevoc | 0 – 20bar | 1/4 NPT Female | BS 341 No. 38 |
| Order By Model | HPS621-04-10-01-01-024-00-A | Fuel Nevoc | 0 – 50bar | 1/4 NPT Female | BS 341 No. 38 |
| Order By Model | HPS621-04-11-01-01-024-00-A | Fuel Nevoc | 0 – 100bar | 1/4 NPT Female | BS 341 No. 38 |
| Order By Model | HPS621-04-12-01-01-024-00-A | Fuel Nevoc | 0 – 200bar | 1/4 NPT Female | BS 341 No. 38 |
| Order By Model | HPS621-04-13-01-01-024-00-A | Fuel Nevoc | 0 – 250bar | 1/4 NPT Female | BS 341 No. 38 |
Applications
- Analytical Laboratories: Ideal for chromatography, mass spectrometry, and other sensitive analytical instruments requiring ultrapure gas delivery.
- Industrial Manufacturing: Essential for specialised welding, laser cutting, and other processes where gas purity directly impacts product quality.
- Refrigeration Systems: Ensures the purity of gases used in various refrigeration and climate control applications.
- Food & Beverage Industry: Critical for modified atmosphere packaging (MAP), inerting, and other processes demanding stringent gas quality standards.
- High-Purity Gas Distribution Systems: Central to the safe and efficient distribution of specialty gases.
Specifications
| Product Line | Spec Master |
|---|---|
| Purity Grade | 6.0 (99.9999%) |
| Gas Properties | Non-corrosive, toxic |
| Material (main body) | Nickel plated brass barstock |
| Material (bonnet) | Nickel plated brass barstock |
| Material (piston) | Brass |
| Material (bonnet seal) | FKM / EPDM |
| Material (valve seat) | PCTFE |
| Material (filter) | 10 Micron 316L Stainless Steel |
| Regulation Type | Single stage |
| Applications | Industry, Refrigeration, Analytical Laboratories, Food and Beverages |
| Maximum Inlet Pressure (bar/psi) | 60, 300 / 870, 4350 (subject to cylinder connection) |
| Delivery Pressure Range (bar/psi) | 20, 50, 100, 200, 250 (300, 725, 1450, 2900, 3625) |
| Gauges | 50mm (2”) Diameter |
| Ports | 1/4” NPT Female |
| Temperature Range | -20oC to +60oC (-4oF to +140oF) |
| Helium leak integrity | 1 x 10-9 mbar l/s |
| Weight (kg / lbs) – Cylinder connection not included | 1.4 / 3.1 |
Resources
Invest in the Gasarc Spec Master HPS620 High Purity Single Stage Regulator to ensure unparalleled precision, purity, and reliability in your gas applications.
